UHF 433MHz RS-232 adapter, Wireless Serial,Radio transmitter module

uConnect

Ubiquitous Connect

特性:
 UHF 433 MHz
 Configure RS-232 parameters via COM port
 1 to 1 connection will Ack the data
 1 to N broadcast will not Ack the data
 Cable replacement, >200 meters

應用:
 PDA, POS, Smartphone
 Receipt printer
 Bar code reader
 RFID reader
 IC card reader
 MSR card reader
 PLC, CNC machine
 Robot, UAV
 SCADA, data collector

規格:
 Support TXD/RXD/CTS/RTS
 Frequency bands: 433 MHz@FSK modulation
 TX power: up to 17 dBm @ 433.92MHz, Distance: 200-300m
 Low consumption: TX: 30mA, RX: 14mA @10dBm
 RF Data Rate : 100 Kbps
 Receiver Sensitivity: -103 dBm @250K bps
 Support software and API setting for Baud rate option
 Baud rate: 1,200/2,400/4,800/9,600(Default )/19,200/38,400/57,600/115.200 bps
 Hopping Frequency: 433.3MHz, 433.6MHz, 434MHz, 3 Chanel

操作手冊

下載

連繫我們: Sales@uconnect.com.tw

一對多超高頻UHF 433 MHz RS-232傳輸器

超高頻UHF 433 MHz RS-232 adapter
型號: UHF-232


		Send Inquiry

Email:



	Contents:

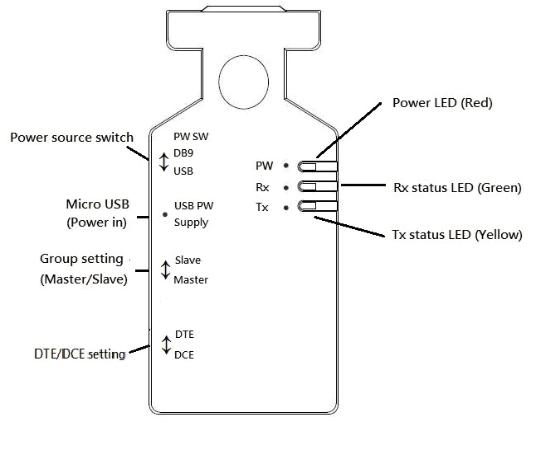

上視功能:

配對按鍵(位於背面):

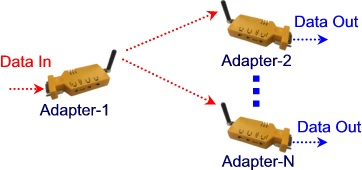

連線架構:
1對1 : 具有ACK確認機制

1對多: 無ACK確認機制

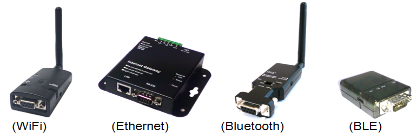

Internet或行動裝置轉換設備: (由RS-232轉換)
1. WiFi RS-232 converter (TCP/IP)
2. Ethernet RS-232 converter (TCP/IP)
3. Bluetooth RS-232 converter (V2.1 SPP or V4.0 BLE)

PC設定軟體:

設定軟體

支援一對多無線傳輸, 長距離(200米), 快速配對功能

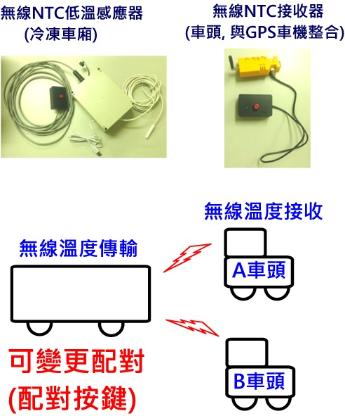

應用範例: 連結車頭與冷凍車箱之溫度傳輸快速配對
