Bluetooth RS-232 Adapter
Bluetooth RS232 Serial Adapter:
1. BT-232B: Internal Chip Antenna
2. BT-232B-E: External Dipole Antenna
1. BT-232B: Internal Chip Antenna
2. BT-232B-E: External Dipole Antenna
Applications:
1. Cable replacement
2. Automation, Remote control, SCADA system
3. LED Display, CNC machine DNC transmission
4. Robot, unmanned carrier
5. PDA, POS, receipt printer, bar code reader, RFID, IC card reader, MSR card reader
Features:
1. Bluetooth EDR, Class 1 (100m), Serial Port Profile (SPP)
2. Configure RS-232 parameters via COM port
3. Internal Chip Antenna (Model: BT-232B)
4. External Battery Input (Model: BT-232B-E)
5. Easy Switching between Data Mode and Command mode
Description:
1. Cable replacement
2. Automation, Remote control, SCADA system
3. LED Display, CNC machine DNC transmission
4. Robot, unmanned carrier
5. PDA, POS, receipt printer, bar code reader, RFID, IC card reader, MSR card reader
Features:
1. Bluetooth EDR, Class 1 (100m), Serial Port Profile (SPP)
2. Configure RS-232 parameters via COM port
3. Internal Chip Antenna (Model: BT-232B)
4. External Battery Input (Model: BT-232B-E)
5. Easy Switching between Data Mode and Command mode

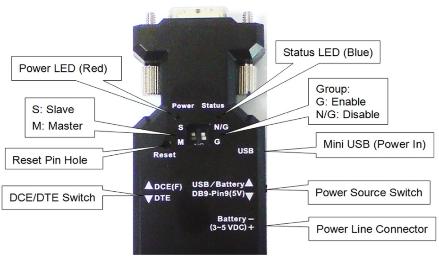

Description:
Power Input: (Choose One)
1. Mini USB
2. External Battery (3~5V DC)
3. Pin 9 of DB9 (5V DC)
1. Mini USB
2. External Battery (3~5V DC)
3. Pin 9 of DB9 (5V DC)
Specifications:
1. Baud Rate: Supports 1.2/2.4/4.8/9.6/19.2/38.4/57.6/115.2/230.4/460.8/921.6 Kbps
2. Coverage: Up to 100 m
3. Connection: Point-to-point (pico net)
4. Signal: TxD, RxD, GND, CTS/RTS
5. RS-232 Interface: D_SUB 9-pin female
6. Standard: Bluetooth specification version 2.0+EDR
7. Profiles: Serial Port Profile
8. Data Bit: 8 bit
9. Frequency: 2.400 to 2.4835 GHz
10. Hopping: 1,600/sec, 1MHz channel space
11. Modulation: GFSK-1 Mbps, DQPSK-2 Mbps, and 8-DPSK-3 Mbps
12. Tx. Power: Max. 18 dBm (Class 1)
13. Rx. Sensitivity: -86 dBm typical
14. Antenna: Chip antenna or SMA female + external antenna
15. Antenna Gain: Chip antenna max. 1 to 2 dBi
16. Power Supply: +5 to +6 V DC
17. Current Consumption: Max. 90 mA
18. Operation Temperature: -20 to +75 Centigrade Degrees
19. Dimensions: 35 mm (W) x 45 mm (H) x 15 mm (D)
Remark: All contents are subject to change without notice.
1. Baud Rate: Supports 1.2/2.4/4.8/9.6/19.2/38.4/57.6/115.2/230.4/460.8/921.6 Kbps
2. Coverage: Up to 100 m
3. Connection: Point-to-point (pico net)
4. Signal: TxD, RxD, GND, CTS/RTS
5. RS-232 Interface: D_SUB 9-pin female
6. Standard: Bluetooth specification version 2.0+EDR
7. Profiles: Serial Port Profile
8. Data Bit: 8 bit
9. Frequency: 2.400 to 2.4835 GHz
10. Hopping: 1,600/sec, 1MHz channel space
11. Modulation: GFSK-1 Mbps, DQPSK-2 Mbps, and 8-DPSK-3 Mbps
12. Tx. Power: Max. 18 dBm (Class 1)
13. Rx. Sensitivity: -86 dBm typical
14. Antenna: Chip antenna or SMA female + external antenna
15. Antenna Gain: Chip antenna max. 1 to 2 dBi
16. Power Supply: +5 to +6 V DC
17. Current Consumption: Max. 90 mA
18. Operation Temperature: -20 to +75 Centigrade Degrees
19. Dimensions: 35 mm (W) x 45 mm (H) x 15 mm (D)
Remark: All contents are subject to change without notice.
|
Accessories: (Optional)
1. Power adapter
2. USB battery box
3. High Gain Dipole Antenna (Indoor or Outdoor)
4. High Gain Patch Antenna (Indoor or Outdoor)
5. 1W Booster
6. RF extended Cable (SMA to SMA)
7. USB to RS-232 Cable
8. DB9 Male to Male gender changer
9. Mini USB to USB Cable
1. Power adapter
2. USB battery box
3. High Gain Dipole Antenna (Indoor or Outdoor)
4. High Gain Patch Antenna (Indoor or Outdoor)
5. 1W Booster
6. RF extended Cable (SMA to SMA)
7. USB to RS-232 Cable
8. DB9 Male to Male gender changer
9. Mini USB to USB Cable
OEM/ODMt: (Please call)
1. Logo printing or package
2. Command set
3. PCBA design
4. Remove plastic housing or DB9 connector
1. Logo printing or package
2. Command set
3. PCBA design
4. Remove plastic housing or DB9 connector
|
Internet Gateway:
Connect the wireless cable to Internet, please visit the Ethernet products for more details.
Connect the wireless cable to Internet, please visit the Ethernet products for more details.
|
 |
 |
 |
 |
 |
