尋問產品資訊: Sales@uconnect.com.tw
 | |  | |  | |  | |  | |  | |  | |  |
 |
 |
 |
 |
 |
 |
 |
 |
| | | | | | | | | | | | | | |
|
|
|
1. Support 922~928 MHz band
2. One panic button, one reset button
3. One LED
4. Dual CR 2032 battery
5. Built in G-sensor (Option)
6. Interfaces: UART, Digital I/O, Analog Input
7. Customized power level: Low (30 m), Middle (100 m), High (300 m)
8. Dimension: 58x41x5 mm
9. Weight: 12g (w/o battery), 16g (w two CR 2032)
2. One panic button, one reset button
3. One LED
4. Dual CR 2032 battery
5. Built in G-sensor (Option)
6. Interfaces: UART, Digital I/O, Analog Input
7. Customized power level: Low (30 m), Middle (100 m), High (300 m)
8. Dimension: 58x41x5 mm
9. Weight: 12g (w/o battery), 16g (w two CR 2032)
Active RFID Reader with RS-232 interface (Model: AD-R1)
Internal view: Dual CR 2032 Battery
Mini tag with Panic: (mock up sample)
PCBA
主動式無線識別標籤系統(Active RFID):
提供標籤(Tag), 讀取器(Reader)及管理軟體方案

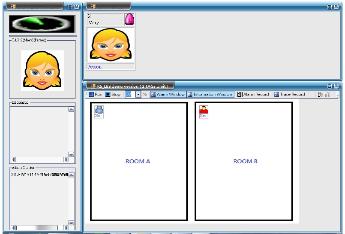

1. 即時定位系統(RTLS): 資產, 人員, 貨物, 手推車等
2. 管制區管理: 企業,倉庫,坑道,銀行,學校,醫院,營區,工廠,賣場,刑犯,動物園,牧場,機場,港口
3. 動態追蹤: 物流,行李,人員,動物
4. 物聯網應用,整合感應器或控制I/O
5. 內建G-sensor (選用), 即時偵測震動狀態
提供標籤(Tag), 讀取器(Reader)及管理軟體方案
1. 即時定位系統(RTLS): 資產, 人員, 貨物, 手推車等
2. 管制區管理: 企業,倉庫,坑道,銀行,學校,醫院,營區,工廠,賣場,刑犯,動物園,牧場,機場,港口
3. 動態追蹤: 物流,行李,人員,動物
4. 物聯網應用,整合感應器或控制I/O
5. 內建G-sensor (選用), 即時偵測震動狀態
Top view
Rear View
Internet Gateway for Active RFID Reader (Model: IP-E2S)
The Internet Gateway will connect with the active RFID reader and convert
to TCP/IP network.
to TCP/IP network.
1. Frequency: 922~928 MHz band
2. User interface: Reset, power LED, status LED,
power switch, mini USB connector, external battery
connector, DCE/DTE switch
3. Interfaces: RS-232 (Default: 9600 bps, 8-N-1)
4. Dimension: 105x33x15 mm (w/o antenna)
5. Weight: 46g (w 0dBi antenna)
2. User interface: Reset, power LED, status LED,
power switch, mini USB connector, external battery
connector, DCE/DTE switch
3. Interfaces: RS-232 (Default: 9600 bps, 8-N-1)
4. Dimension: 105x33x15 mm (w/o antenna)
5. Weight: 46g (w 0dBi antenna)

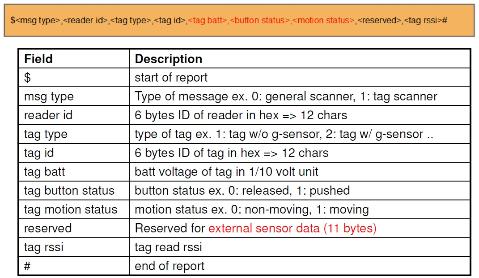

RFID資料結構:
支援多種網路架構:

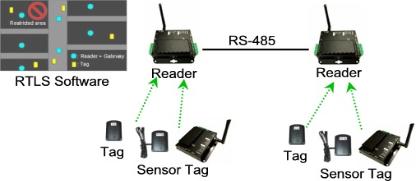

Star:

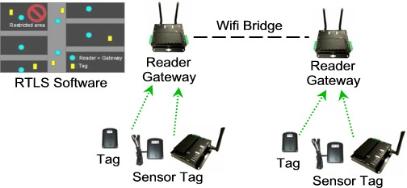

Broadcast:

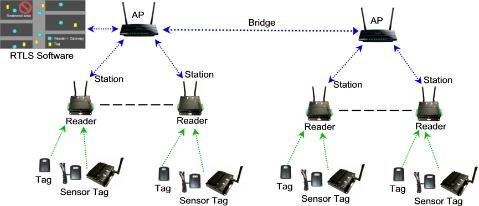

Hybrid:
主動式 RFID
