Specifications:
1. Solution: TI CC 2530 (Low power), TI CC 2530 + CC 2591 (High power)
2. Coverage: 30~50 m (Low power), 500~800 m (High power) (The actual distance
is depend on the real environment and the antenna. For reference only)
3. Tx. Power: 4.0dBm (Low power), 18 dBm (High power)
4. Rx. Sensitivity (Nominal): -95dBm (Low power), -95 dBm (High power)
5. Baud Rate: Supports 1.2/2.4/4.8/9.6/19.2/38.4/57.6/115.2/230.4 Kbps
6. Connection: Point to Multi-points
7. UART Interface: TxD, RxD, GND, CTS/RTS
8. RS-232 Interface: D_SUB 9-pin female
9. Standard: 2.4 GHz IEEE 802.15.4 / ZigBee Pro Stack
10. Data rate: 250Kbps
11. Data Bit: 8 bit
12. Frequency: 2.4GHz~2.5 GHz
13. Modulation: DSSS
14. Antenna: SMA female + external dipole antenna
15. Antenna Impedance: 50 ohm
16. Power Supply: +5 to +6 V DC
17. Current Consumption: TX: 35.5 mA @ +4.5 dBm, RX: 24 mA
18. Operation Temperature: -20°C to +75°C
19. Dimensions: 35 mm (W) x 45 mm (H) x 15 mm (D)
Remark: All contents are subject to change without notice.
1. Solution: TI CC 2530 (Low power), TI CC 2530 + CC 2591 (High power)
2. Coverage: 30~50 m (Low power), 500~800 m (High power) (The actual distance
is depend on the real environment and the antenna. For reference only)
3. Tx. Power: 4.0dBm (Low power), 18 dBm (High power)
4. Rx. Sensitivity (Nominal): -95dBm (Low power), -95 dBm (High power)
5. Baud Rate: Supports 1.2/2.4/4.8/9.6/19.2/38.4/57.6/115.2/230.4 Kbps
6. Connection: Point to Multi-points
7. UART Interface: TxD, RxD, GND, CTS/RTS
8. RS-232 Interface: D_SUB 9-pin female
9. Standard: 2.4 GHz IEEE 802.15.4 / ZigBee Pro Stack
10. Data rate: 250Kbps
11. Data Bit: 8 bit
12. Frequency: 2.4GHz~2.5 GHz
13. Modulation: DSSS
14. Antenna: SMA female + external dipole antenna
15. Antenna Impedance: 50 ohm
16. Power Supply: +5 to +6 V DC
17. Current Consumption: TX: 35.5 mA @ +4.5 dBm, RX: 24 mA
18. Operation Temperature: -20°C to +75°C
19. Dimensions: 35 mm (W) x 45 mm (H) x 15 mm (D)
Remark: All contents are subject to change without notice.
 | |  | |  | |  | |  | |  | |  | |  |
Inquire the product: Sales@uconnect.com.tw
Zigbee RS-232 Adapter:
(3 in 1 firmware: Coordinator, Router and End device)
1. ZA-L2: Low power with 2 dBi Ant.
2. ZA-H5: High power with 5 dBi Ant.
Features:
1. 3 in 1 firmware: Coordinator, Router and end Device (DIP switch for selection)
2. Support Low power & High power models
3. Power sources: Mini USB, External battery, DB9 pin9 (5VDC)
4. Support RS-232, Digital I/O and Analog Input interfaces:
4.1 Digital I/O:
Remote control logic high (MIN 2.4V), low (MAX 0.5V).
Output drives capability 20mA. , Max Voltage 3.3V.
4.2 Analog Input(ADC): Max Voltage 3.3V, 8bit- resolution
Applications:
1. Home automation, building automation
2. Cable replacement
3. SCADA system, Wireless sensor network, Internet of Things
4. Robot, unmanned carrier
5. PDA, POS, receipt printer, bar code reader, RFID, card reader
6. Power meter, Smart energy, Green power, LED light
Description:
(3 in 1 firmware: Coordinator, Router and End device)
1. ZA-L2: Low power with 2 dBi Ant.
2. ZA-H5: High power with 5 dBi Ant.
Features:
1. 3 in 1 firmware: Coordinator, Router and end Device (DIP switch for selection)
2. Support Low power & High power models
3. Power sources: Mini USB, External battery, DB9 pin9 (5VDC)
4. Support RS-232, Digital I/O and Analog Input interfaces:
4.1 Digital I/O:
Remote control logic high (MIN 2.4V), low (MAX 0.5V).
Output drives capability 20mA. , Max Voltage 3.3V.
4.2 Analog Input(ADC): Max Voltage 3.3V, 8bit- resolution
Applications:
1. Home automation, building automation
2. Cable replacement
3. SCADA system, Wireless sensor network, Internet of Things
4. Robot, unmanned carrier
5. PDA, POS, receipt printer, bar code reader, RFID, card reader
6. Power meter, Smart energy, Green power, LED light

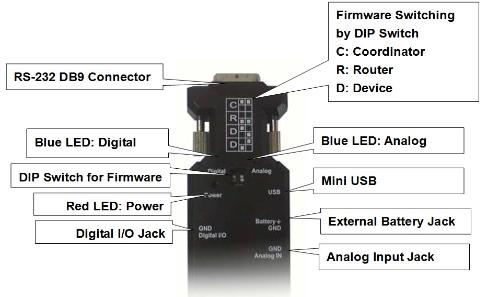

Description:
Model: ZA-L2
Model: ZA-H5
Digital Input External Circuit:

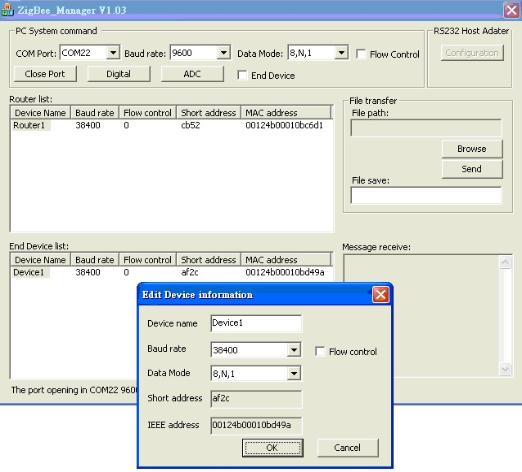

Zigbee Manager Software:
For evaluation, setup and test use only.
For evaluation, setup and test use only.
Low power
RS-232 Adapter
RS-232 Adapter
High power
RS-232 Adapter
RS-232 Adapter

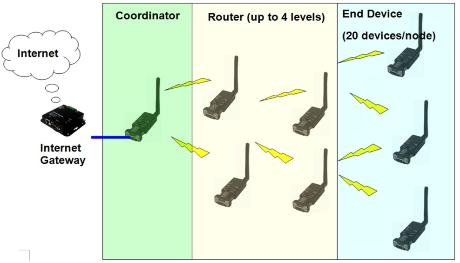

Mesh Network: up to 4 routers and 20 devices per node
Star Network:
Transmit data without short address, up to 20 end devices, without router.
Transmit data without short address, up to 20 end devices, without router.
One to One Cable replacement:
Transmit data without short address, up to 4 routers to extend the distance.
Transmit data without short address, up to 4 routers to extend the distance.
|
|
|
| | | | | | | | | | | | | | |
 |
 |
 |
 |
 |
 |
 |
 |
Zigbee RS-232 & DIO & AI
