Features:
1. Support 915~928 MHz band
2. Up to 500 Kbps data rate
3. Support 7 or 8 data bit
6. Interfaces: RS-232, Digital I/O, Analog Input
7. Customized power level: Low (30 m), Middle (100 m), High (300 m)
8. Support several types of network: Broadcast, Star or Mask
9. The adapter can be integrated with Active RFID RS-232 Reader
Applications:
1. LED Signage Player
2. PLC, CNC
3. Remote controller
4. SCADA
5. Wireless sensor network
6. RFID reader gateway
...
1. Support 915~928 MHz band
2. Up to 500 Kbps data rate
3. Support 7 or 8 data bit
6. Interfaces: RS-232, Digital I/O, Analog Input
7. Customized power level: Low (30 m), Middle (100 m), High (300 m)
8. Support several types of network: Broadcast, Star or Mask
9. The adapter can be integrated with Active RFID RS-232 Reader
Applications:
1. LED Signage Player
2. PLC, CNC
3. Remote controller
4. SCADA
5. Wireless sensor network
6. RFID reader gateway
...
Network types: The products support all the network types.
1. Broadcast: Each node will broadcast to all other nodes. Up to 8 nodes.
1. Broadcast: Each node will broadcast to all other nodes. Up to 8 nodes.
2. Star Network: One to multi points bidirectional transmission. Up to 1 to 8 points.
3. Mask Network: Each adapter will transmit the data to the specific nodes.
Product Profile:
4. The IP address will be configured on or off by the command. The controller
can transmit the data to the specific device.
can transmit the data to the specific device.
| | | | | | | | | | | | | | |

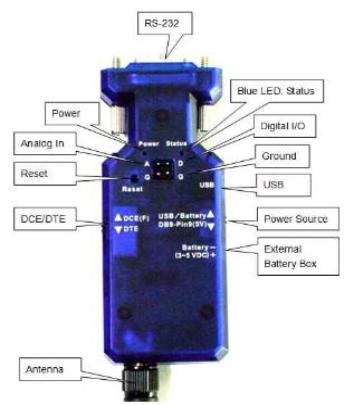

UHF RS-232 Adapter (Model: UA-232)
The serial adapter supports one to eight wireless to

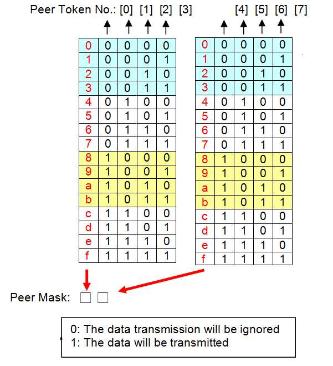

each node bi-directional. The peer mask "PM"
setting will control the transmission destination and
direction. The "AS" command will control the data
sent with or without the IP address information. The
range will be longer than 300 meters in open space
and high gain antenna.
The serial adapter supports one to eight wireless to
each node bi-directional. The peer mask "PM"
setting will control the transmission destination and
direction. The "AS" command will control the data
sent with or without the IP address information. The
range will be longer than 300 meters in open space
and high gain antenna.
 |
 |
 |
 |
 |
 |
 |
 |
UHF RS-232
