Humidity and Temperature Meter
Home --> Sensor --> SHT-DB9
Notice:
Humidity and Temperature Meter
(Model: SHT-DB9)
Send Inquiry
Email:
Contents:
Part No.
 Description
SHT-DB9
 Humidity and Temperature Meter with DB9 connector, Pin 5: GND, Pin 9: 5V DC IN
SHT-DB9-E
 Humidity and Temperature Meter with DB9 connector, External black cable:
Ground, External brown cable: 5V DC IN
Order information:
 Operation temperature : 0~60℃.
 Operation humidity : 15~95%RH.
 Accuracy :
Temperature ±1℃
Humidity ±3%RH at 25℃
 RS232 interface for TXD/RXD/GND.
 Baud rate : 9600 bps, 8 data bits, None parity, 1 Stop bit
 Connector: DB9 (female)

Application:
 Server room monitor.
 Indoor building automation.
 HVAC system.
 Wireless Sensor Network (WSN)

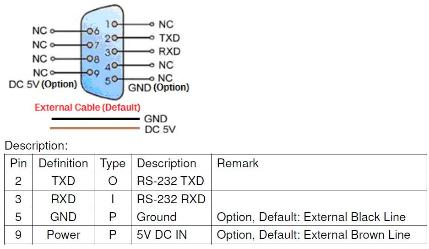

DB9 connector pin definition:
Description:
*TH-10R : Temperature and Humidity module.
+025.5C : Temperature value.
0064.0% : Humidity value.
XX : Checksum.
Command:
