Active RFID Tag: (Model AD-T1)
1. Support 922~928 MHz band
2. One panic button, one reset button
3. One LED
4. Dual CR 2032 battery
5. Built in G-sensor (Option)
6. Interfaces: UART, Digital I/O, Analog Input
7. Customized power level: Low (30 m), Middle (100 m), High (300 m)
8. Dimension: 58x41x5 mm
9. Weight: 12g (w/o battery), 16g (w two CR 2032)
1. Support 922~928 MHz band
2. One panic button, one reset button
3. One LED
4. Dual CR 2032 battery
5. Built in G-sensor (Option)
6. Interfaces: UART, Digital I/O, Analog Input
7. Customized power level: Low (30 m), Middle (100 m), High (300 m)
8. Dimension: 58x41x5 mm
9. Weight: 12g (w/o battery), 16g (w two CR 2032)
Active RFID Reader with RS-232 interface (Model: AD-R1)
Internal view: Dual CR 2032 Battery
Mini tag with Panic: (mock up sample)
PCBA
Active RFID System: Tag, Reader and management software
1. Location system: Asset, Passenger, Patient, Trailer
2. Access control: Garage, Enterprises, Bank, Vehicle, Factory, Hospital, Superstore,
School, Warehouse
3. Logistic management, Cargo tracking, Airport baggage management
4. Local Area Real Time Location Systems (RTLS)
5. Asset Management, Internet of Things (IOT) applications
1. Location system: Asset, Passenger, Patient, Trailer
2. Access control: Garage, Enterprises, Bank, Vehicle, Factory, Hospital, Superstore,
School, Warehouse
3. Logistic management, Cargo tracking, Airport baggage management
4. Local Area Real Time Location Systems (RTLS)
5. Asset Management, Internet of Things (IOT) applications

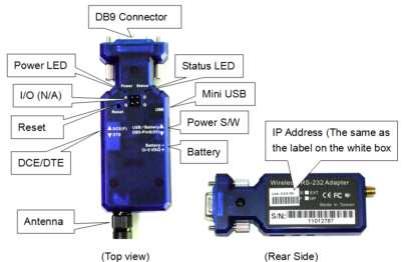

Top view
|
|
| | | | | | | | | | | | | | |
Rear View
Internet Gateway for Active RFID Reader (Model: IP-E2S)
The Internet Gateway will connect with the active RFID reader and convert
to TCP/IP network.
to TCP/IP network.
|
1. Frequency: 922~928 MHz band
2. User interface: Reset, power LED, status LED,
power switch, mini USB connector, external battery
connector, DCE/DTE switch
3. Interfaces: RS-232 (Default: 9600 bps, 8-N-1)
4. Dimension: 105x33x15 mm (w/o antenna)
5. Weight: 46g (w 0dBi antenna)
2. User interface: Reset, power LED, status LED,
power switch, mini USB connector, external battery
connector, DCE/DTE switch
3. Interfaces: RS-232 (Default: 9600 bps, 8-N-1)
4. Dimension: 105x33x15 mm (w/o antenna)
5. Weight: 46g (w 0dBi antenna)
Frame structure:
Network topology:
Star:
Broadcast:
Hybrid:
 |
 |
 |
 |
 |
 |
 |
 |
Active RFID
